How it works

General idea

The objective is to establish a fully automated deployment process that provisions all necessary infrastructure and containers as specified in the docker-compose.yaml files through a continuous integration/continuous deployment (CI/CD) pipeline. Aside from a few manual steps outlined in the Preparation section, all configurations will be defined in code.

Containers Deployment

When the setup is deployed a VPS will be launched in Hetzner were your containers will run. In this VPS your github repository will be also cloned under /root/deployr/

Deployr script

The deployr script is executed periodically (every 3 minutes) and taking care of the following actions:

1. Fetch latest code from your repository.
2. Fetch all secrets from your infisical project and save them locally in the VPS (see Secrets section below for more info)
3. If there is any new commit detected then docker compose up -d /root/deployr/containers-host/apps/docker-compose.yaml is executed

Docker-compose structure

Instead of having a large docker-compose.yaml file where we define all the services, we use instead the include command to split the configuration in multiple files.

Below a structure of the folder containers-host/apps in your repository.

├── docker-compose.yaml
├── traefik
│   └── docker-compose.yaml
└── uptime
    └── docker-compose.yaml

root docker-compose file

In this structure there is a main docker-compose.yaml file which is used to configure:

1. Which other docker-compose.yaml files should be included, so in other words which other services should be enabled.
2. The docker network name and subnet.

example of a root docker-compose.yaml file

version: "3"
include:
  - ./traefik/docker-compose.yaml
  - ./docker-backup/docker-compose.yaml
  - ./dashy/docker-compose.yaml
  - ./uptime/docker-compose.yaml
networks:
  private_network:
    name: private_network
    driver: bridge
    ipam:
      config:
        - subnet: 172.29.1.0/24

application specific docker-compose file

All applications in this example (traefik/docker-backup/dashy/uptime) should have then their own dedicated docker-compose.yaml file under a specific directory.
For instance for the traefik application the docker-compose.yaml is the traefik/docker-compose.yaml

version: "3.8"

name: traefik

services:
  traefik:
    image: traefik:v3.3
    container_name: traefik
    ports:
      - 80:80
      - 443:443
      - 8080:8080
    networks:
      private_network:
    env_file:
      - .secrets
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock:ro
      - /mnt/data/traefik/letsencrypt:/letsencrypt
    command:
      - "--api=true"
      - "--api.dashboard=true"
      - "--providers.docker=true"
      - "--providers.docker.exposedbydefault=false"
      - "--entrypoints.web.address=:80"
      - "--entrypoints.websecure.address=:443"
      - "--entrypoints.web.http.redirections.entryPoint.to=websecure"
      - "--certificatesresolvers.letsencrypt.acme.dnschallenge=true"
      - "--certificatesresolvers.letsencrypt.acme.dnschallenge.provider=cloudflare"
      - "--certificatesresolvers.letsencrypt.acme.email=${EMAIL}"
      - "--certificatesresolvers.letsencrypt.acme.storage=/letsencrypt/acme.json"
    labels:
      - "traefik.enable=true"
      - "traefik.http.routers.dashboard.entrypoints=websecure"
      - "traefik.http.routers.dashboard.tls.certresolver=letsencrypt"
      - "traefik.http.routers.dashboard.rule=Host(`dashboard.${DOMAIN}`) && (PathPrefix(`/api`) || PathPrefix(`/dashboard`))"
      - "traefik.http.routers.dashboard.service=api@internal"
    restart: always

Persistent Storage

The setup provision a volume in Hetzner which is attached in the VPS under /mnt/data. Any data that need to persist is highly recommeneded to be stored there. This can be done by mounting the path inside the container under /mnt/data/application_name.
By storing persistent data in an external volume, the data remains unaffected by the lifecycle of the VPS. This means that if the VPS is replaced, the data in the external volume will not be lost. Additionally, the external volume comes with delete protection enabled by default, ensuring that it cannot be deleted without first disabling this protection.

tip

It is not necessary to store application-specific persistent data under the directory /mnt/data/application_name. For instance, Traefik's persistent data can reside in any subdirectory within /mnt/data. However, it is recommended to maintain a structured organization that suits your needs for better management and accessibility.

Secrets

Infrastructure secrets

All secrets, except those use by the containers are storeed as repository secrets in Github, so they can be consumed during the execution of the pipeline.

Application specific secrets

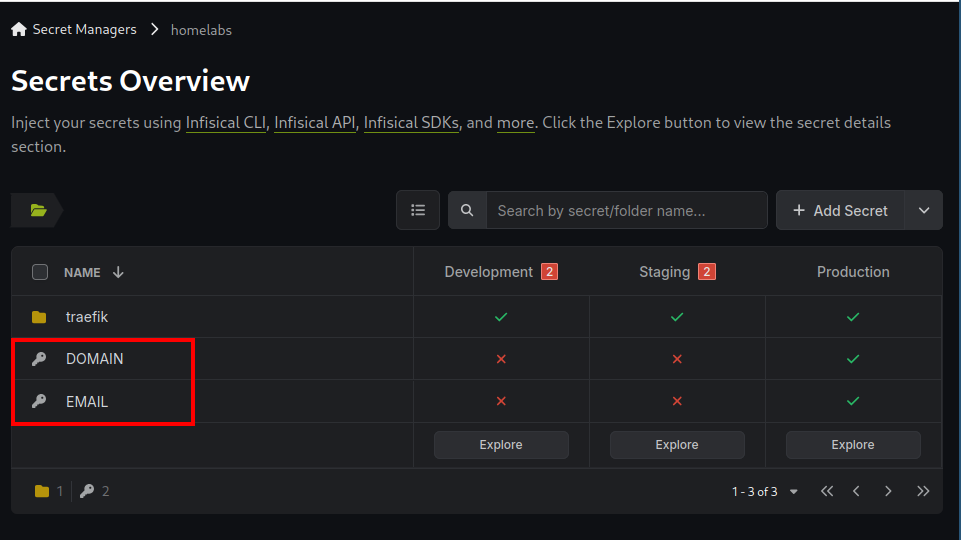

Secrets that need to be used inside the containers are stored as external secrets at infisical. All secrets that are stored in the root directory of infisical are going to be stored in the VPS in an .env file along with the root docker-compose.yaml . That way those secrets will be available to all containers as environment variables.

├── docker-compose.yaml
├── .env #This file will contain the secrets highlighted above
├── traefik
│   └── docker-compose.yaml
└── uptime
    └── docker-compose.yaml

info

Downloading the secrets and storing them in the .env file is done by the deployr script and this action is executed periodically.

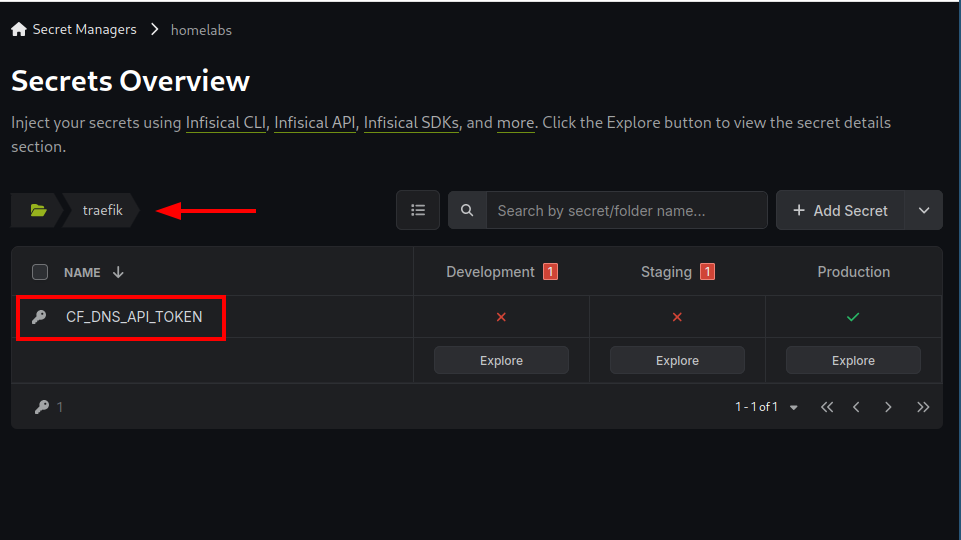

All secrets stored in Infisical under the traefik directory will be copied to the file ./traefik/.secrets, making them accessible to the Traefik containers as defined in ./traefik/docker-compose.yaml.

├── docker-compose.yaml
├── .env
├── traefik
│   ├── docker-compose.yaml
│   └── .secrets #This file will contain the secrets highlighted above
└── uptime
    └── docker-compose.yaml

tip

To create a .secrets file for each application, we can create a corresponding directory in Infisical with the same name. For example, to create a .secrets file for the uptime application, we need to create an uptime directory in Infisical and store the relevant secrets there. These secrets will then be saved in the file ./uptime/.secrets.
